DISTILATOR 30 L STAINLESS 60

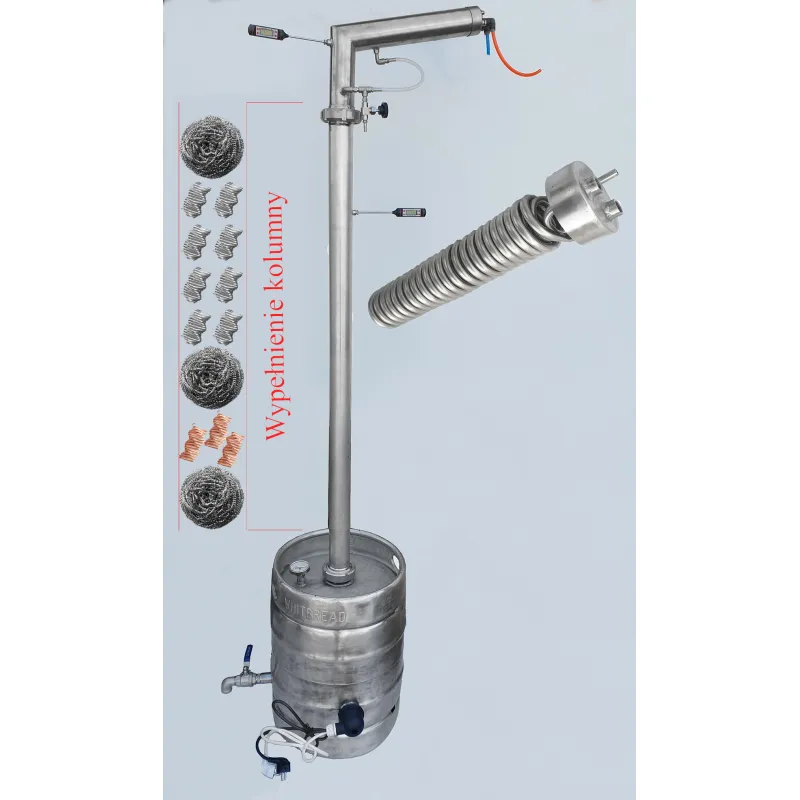

Abratic gas distiller on 60.3 mm pipe, grade 304 stainless steel, welded Tig, dip etched. Kit with 30 liter tank.

CLAMP distiller.

In this type of distillers we get 96% high-quality spirit the first time. The device allows you to achieve distillate at the highest level of purity.

Śgreat broadcastę for distillation of essential oils, water and high percentage solutions.

High'' the entire set with the tank about 190 cm.

Head with welded tamką, at the reception outlet. Head welded at an angle of approximately 105 degrees. A spiral cap is inserted into the head cooler complete with air vent and two water inlets. The cooling spiral is made of 6 meters of Fi 8 pipe.

Rectification column 120 cm high, made of 60.3 mm 304 stainless steel tube. się stainless and copper springs. Toł columns, we use a scourer to maintain the filling. Stainless and copper springs also separates with a dish washer so that they will not mix. A 1/8 inch thermometer port is welded 20 cm from the top of the column.

The set should be handled upon receipt thoroughly warm waterą.

The exhibited set includes: : tank, column with thermometer port (without filling), spiral head and cap doubleą.

We have distillers on various diameters of pipes and tanks.

At the bottom we present an exemplary distiller connection diagram:
