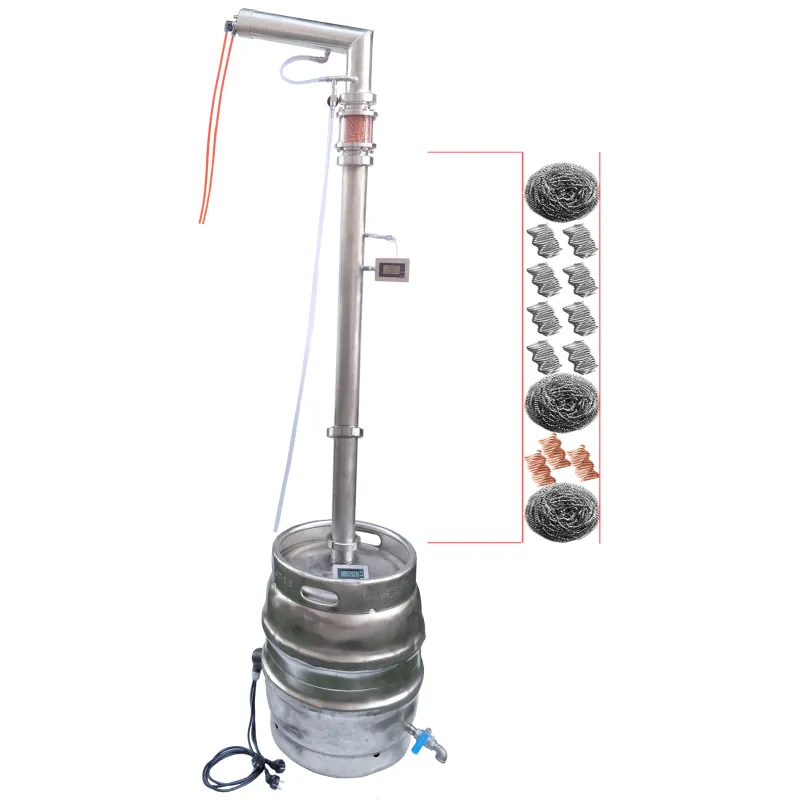

Aabratek 50L distiller with external reflux, thanks to which it is possible to expand the distiller and connect solenoid valves for automatic control

Abratec type electric distiller on 50.8 mm pipe, stainless steel grade 304, welded Tig, dip etched. Set with a 50 liter tank

SMS distiller. there is alsoż execution on the CLAMP dairy connection DN,  flange, nipple-female.

In this type of stills we get 96% high-quality spirit the first time. The device allows you to achieve distillate at the highest level of purity.

ŚFabulousę for distillation of essential oils, water and high percentage solutions.

High' the entire set with the tank about 190 cm.

Head with welded tamką, at the reception outlet. Head welded at an angle of approximately 105 degrees. A spiral cap is inserted into the head cooler complete with air vent and two water inlets. The cooling spiral is made of 6 meters of Fi 8 pipe (it is also possible to make it from a 3-meter pipe).[105 ]

Rectification column 120 cm high, made of 50.8 mm stainless steel 304 tube. się stainless and copper springs. Toł columns, we use a scourer to maintain the filling. Stainless and copper springs also separates with a dish washer so that they will not mix. A 1/8 inch thermometer port is welded 20 cm from the top of the column.

The set should be handled upon receipt; thoroughly warm water.

The set includes: : tank, column with port for thermometer, thermometer, filling made of coffee-resistant stainless steel and copper, spiral head and cap doubleą - thanks to this solution, we save water, precise valve, 1.5 m of silicone hose.
[1037 ]

There is a possibility to add or replace:
1.Keg with a capacity of 50 l made of stainless steel - very quick and simple, tool-free assembly  #380; columns on the SMS, CLAMP connector. Mleczarski, DN, nipple, spigot. (tank capacity 30, 50, 80, 100, 280l)

3.Aabratek type head, ufo, cold fingers which allows fraction draining unwanted distillations.

[103 ]

[ 103]
4. 1/8 or 1/4 inch needle valve

[ 1061]
5. Cooler made of pipe 8mm or 10mm length up to 1m and several kilometers of stainless steel which ensures perfect and immaculateą asść distillate

[ 103]
6. Electronic thermometer measuring temperature  at the top column  or on any shelf from the barrel god or from above with an alarm.

[103 ]
7. Wąż reinforced with connectorą for water connection or polyurethane.

[103 ]
8. Distiller filling Copper springs, stainless steel springs or washers made of stainless steel AISI304 or AISI410 for stability columns and extracting dangerous chemical compounds.

9. Execution of the floor cooler with bottom or top intake.

]
10. Making a stabilizing buffer provides much more efficiency distiller, maximally increases the amount of the resulting product  "heart" as well as faster reception on the joints.

]
11. montaż feet for the tank that allow adjustmentę tank.

]
12. Bottom or side drain execution.

]

[ 105]
13. Tanks caną wouldć made for gas with a stool adapted to the tank or  to current with weldedą muffą.

[105 ]

[ 105]
14. The distiller column can be divided or in its entirety.

[100 ]
15. There is a possibility the implementation of a catalyst that will allow you to quickly and easily clean copper filling.

[100 ]
16. We make wide sprues thanks to which it is possible to insert a hand  and easy cleaning of the tank.

[100 ]

16. We install sight glasses in distillers that allow you to view the mixture 1082]

We have distillers on various diameters of pipes and tanks. Sample still:

[ 100]

xxxxxxxx

[1012 ]At the bottom we present an exemplary distiller connection diagram
:
