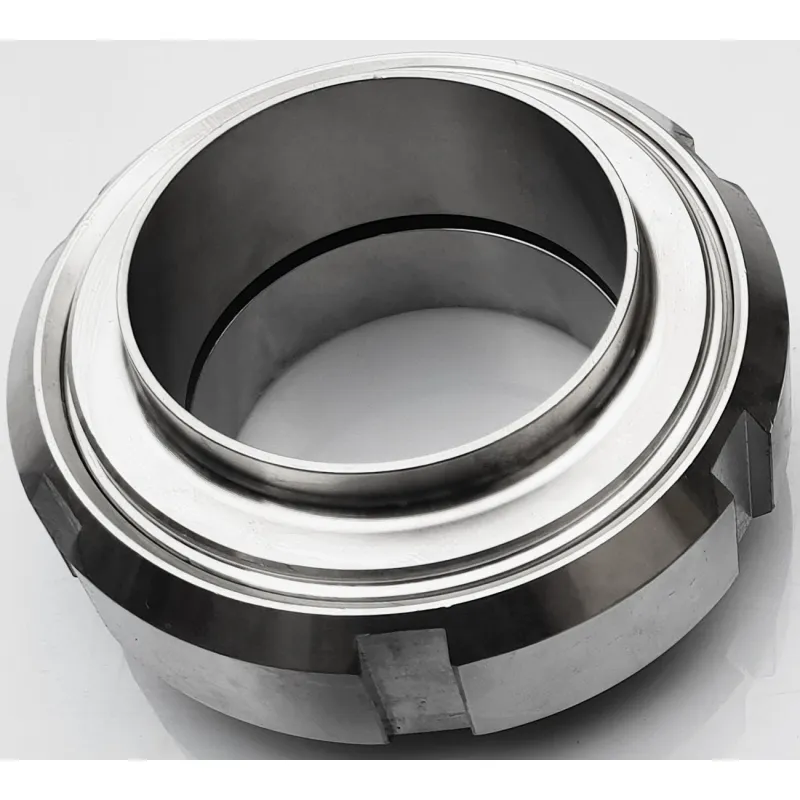

SMS COUPLER 51 MM STAINLESS

- STAINLESS STEEL 304 for welding

The set includes:

  -  Conical stub
  -  Threaded stub
  -  Nut with thread
]  -  Text seal  - ALCOHOL RESISTANT

SMS connector 51 mm made of 304 acid-proof stainless steel. The connector has a seal siliconeą , resistantą on temperatureę up to 250 degrees. Welding joint, apply for connecting pipes.

Suitable for 48 & 2111; 54mm.

Joint consists of consisting of 4 elements: a welding sleeve, a pressure sleeve with an external thread, a flange ring with an internal thread and a silicone gasket.

The weight of the connector is: approx. 0.540 g.

Connector Dimensions:

Śouter diameter of welding sleeve– approx. 51mm

Śinside diameter of welding sleeve– approx. 48mm

Śdiameter male thread– approx. 68mm

Śdiameter internal thread– approx. 72mm

Thick gaskets – approx. 5.5 mm.

Connection food grade, suitable for contact with 'food' , distillate or alcohols.

We also have the offer includes other connectors, such as Tri Clamp or tangs.
