DISTILLER 100 L STAINLESS 76

Abratec type electric distiller on 76 mm 304 stainless steel pipe, welded Tig, dip etched. Kit with 100 liter tank in welded half&322;muff&261; for a heater. Distiller designed to control the heater stainlessą doubleą 1400/2000W, which is available at our auctions.

CLAMP distiller.

In this type of distillers we get 96% high-quality spirit the first time. The device allows you to achieve distillate at the highest level of purity.

Śgreat broadcastę for distillation of essential oils, water and high percentage solutions.

High'' the entire set with a tank of about 200 cm.

Head with welded tamką, at the reception outlet. Head welded at an angle of approximately 105 degrees. A spiral cap is inserted into the head cooler complete with air vent and two water inlets. The cooling spiral is made of 6 meters of Fi 8 pipe.

Rectification column 120 cm high, made of 76 mm 304 stainless steel tube. się stainless and copper springs. Toł columns, we use a scourer to maintain the filling. Stainless and copper springs also separates with a dish washer so that they will not mix. A 1/8 inch thermometer port is welded 20 cm from the top of the column.

The set should be handled upon receipt thoroughly warm waterą.

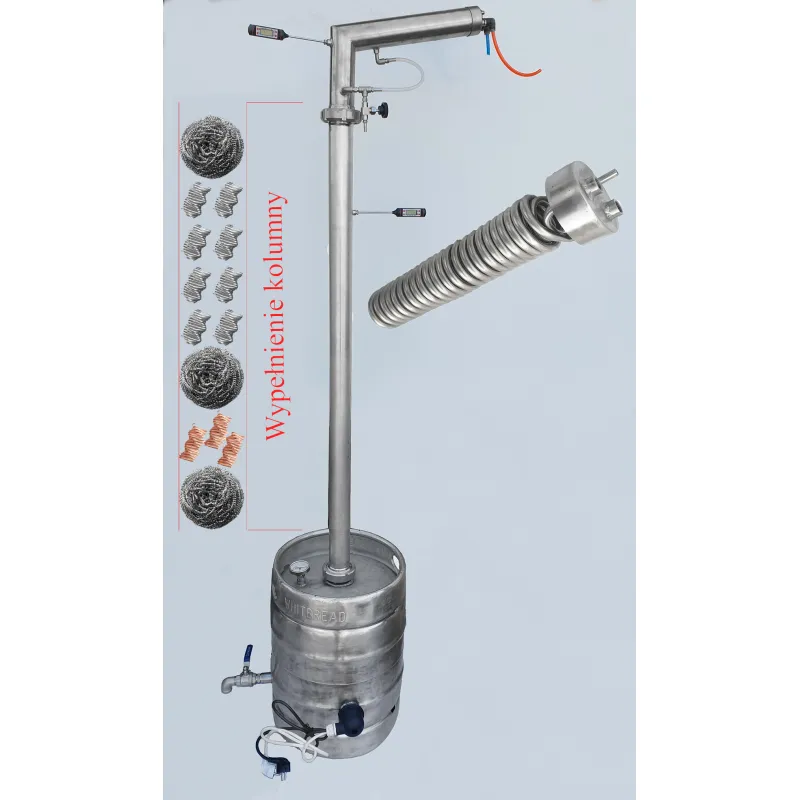

The exhibited set includes: : tank, column with thermometer port (without filling), spiral head and cap doubleą.

Example distiller connection diagram:
