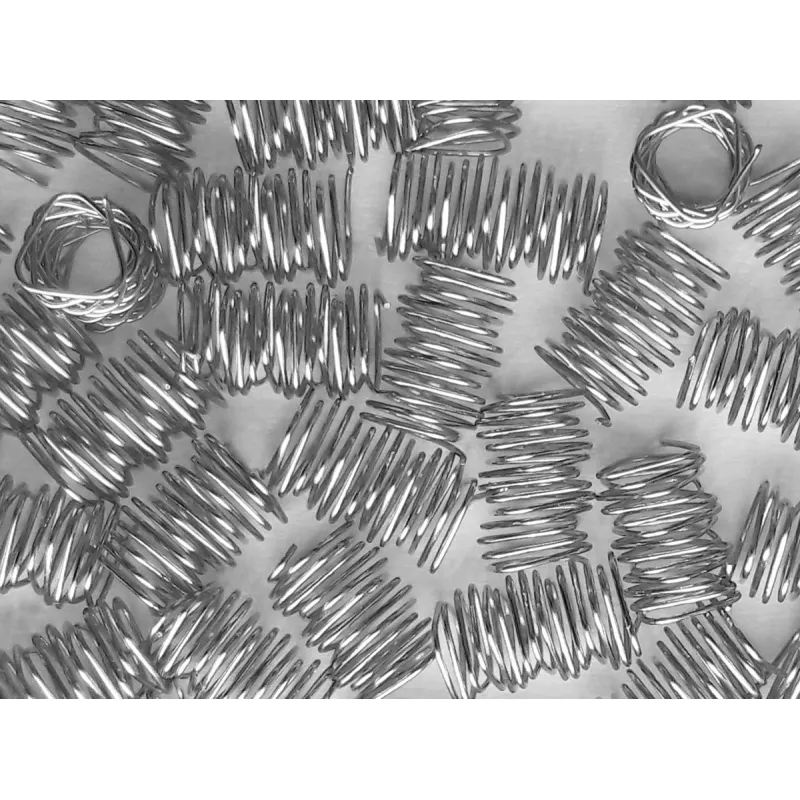

Column filling - prismatic springs

Reputable and recommended product, first quality for the distiller. Professional filling of the rectification column in the form of stainless springs. The filling is made of stainless steel AISI 304, it functions as catalytic.

The price is for 1 LITER of filling

We also have the offer includes a copper filling that cleans distilled vapors from harmful and undesirable sulfur and hydrogen sulfide compounds. Stainless acid-resistant springs made of stainless steel wire with a diameter of 0.25 mm professionally dissipates heat.

100% STAINLESS STEEL (304)[ 108]

Professional filling of the rectification column in the form of stainless steel springs, performs the function of catalyticą.

TECHNICAL PARAMETERS

- Wire with a diameter of 0.25 mm

- "diameter of the prismatic spring about 4 mm
]
- Longść prismatic spring approx. 6 - 7 mm

- Thickness bulk about 0.5kg/l

Prismatic springs are the best, most effective filling of the distiller's ratification column, have best surface area to volume ratio

The bulk filling for the columns is used to maximize the heat exchange surface between the steam i'm going from the tank to the dephlegmator and back. Prismatic springs are the best distiller column packing.



Prismatic springs have a best surface area to volume ratio.

BEFORE FIRST USE:

Before backfilling new springs they need to be digestedć waterą oxidizedą 3% with the addition of citric acid or też mindć in hot water with detergent and rinse

In our online store, there is a calculator to calculate the number of prismatic springs and washers in the rectification column.

<<< If you don't know how to fill out columnsę this is where you will find the calculator <<<< click >>>>

The table below shows an example volume springs in column:

You don't know how to fill out columnsę rectification&261; distiller??? It's już you know:

Layers filled with prismatic springs:

- stainless steel scourer AISI 304 40g,

- AISI 304 stainless steel prismatic springs (fill from 1L to 9L depending on the column you have, see above) ; tables),

- stainless steel scourer AISI 304 40g,

- Cu copper prismatic springs (we fill about 0.5l),

- prismatic stainless steel washer AISI 304 40g.

Illustrative photo of distiller column filling, as described above:
